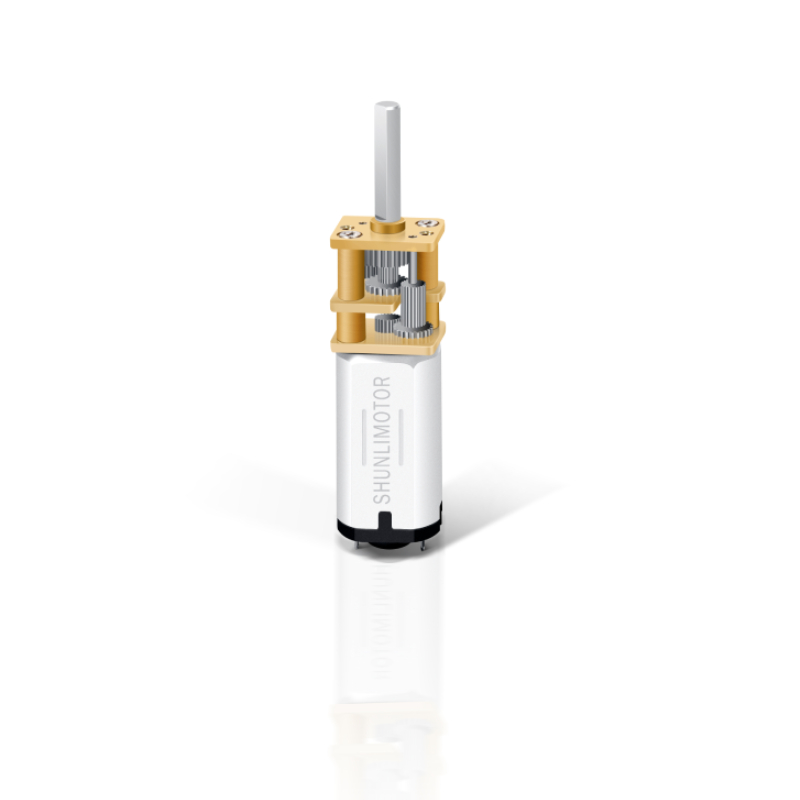

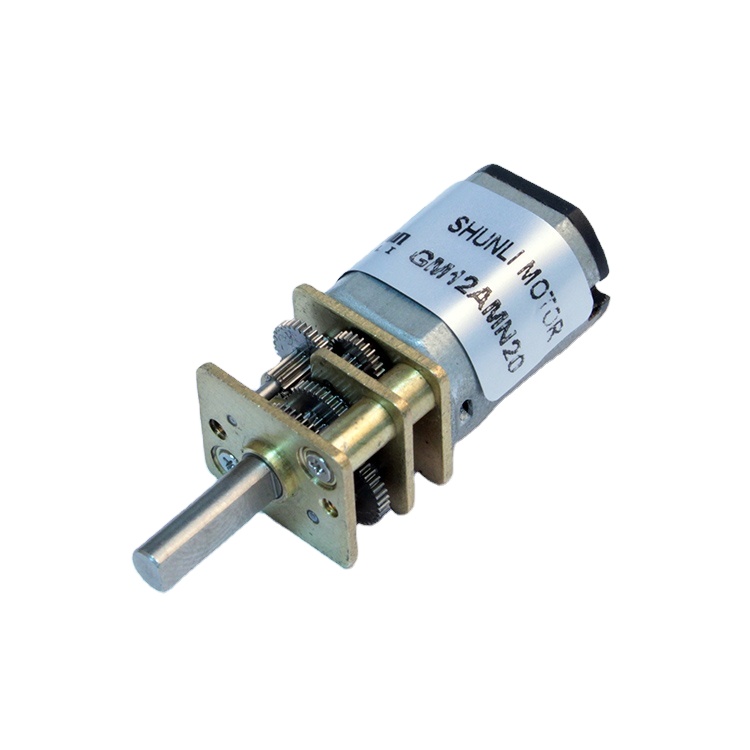

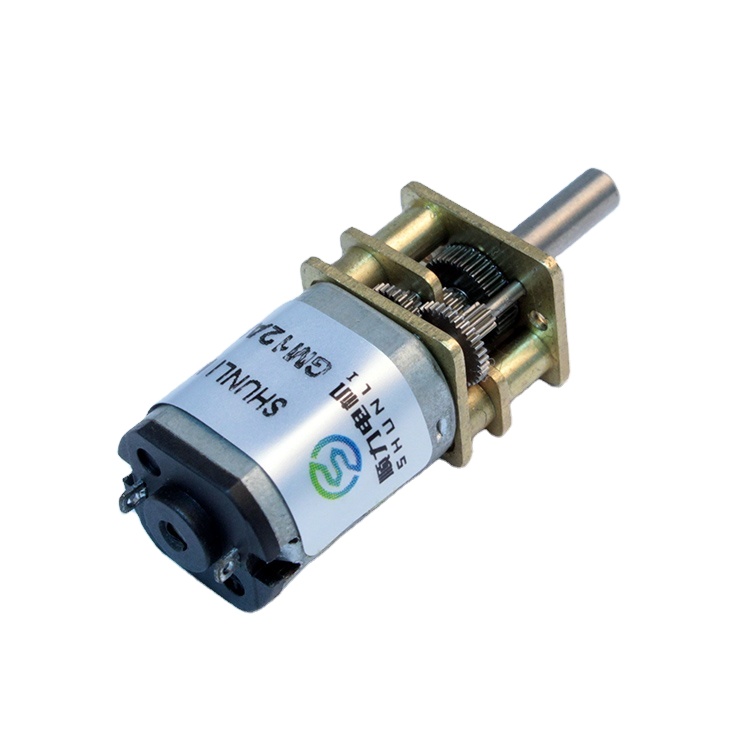

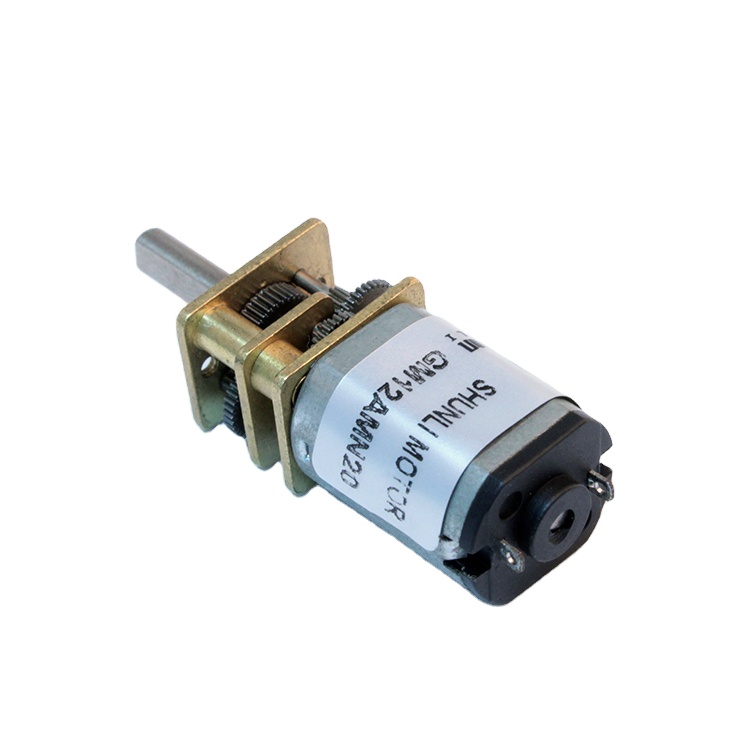

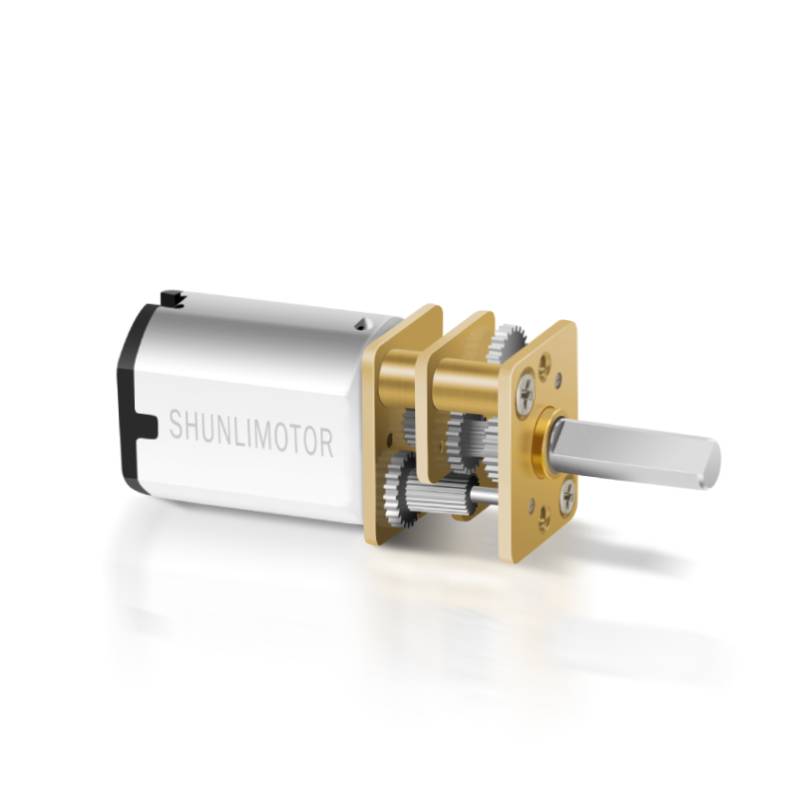

12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor

Product Description

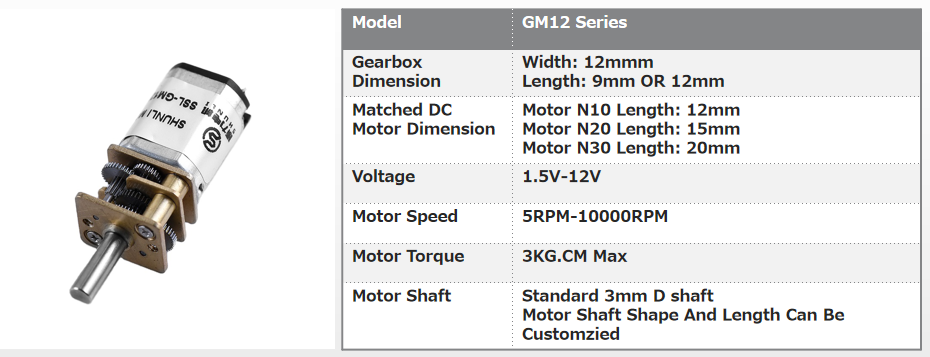

Product Details

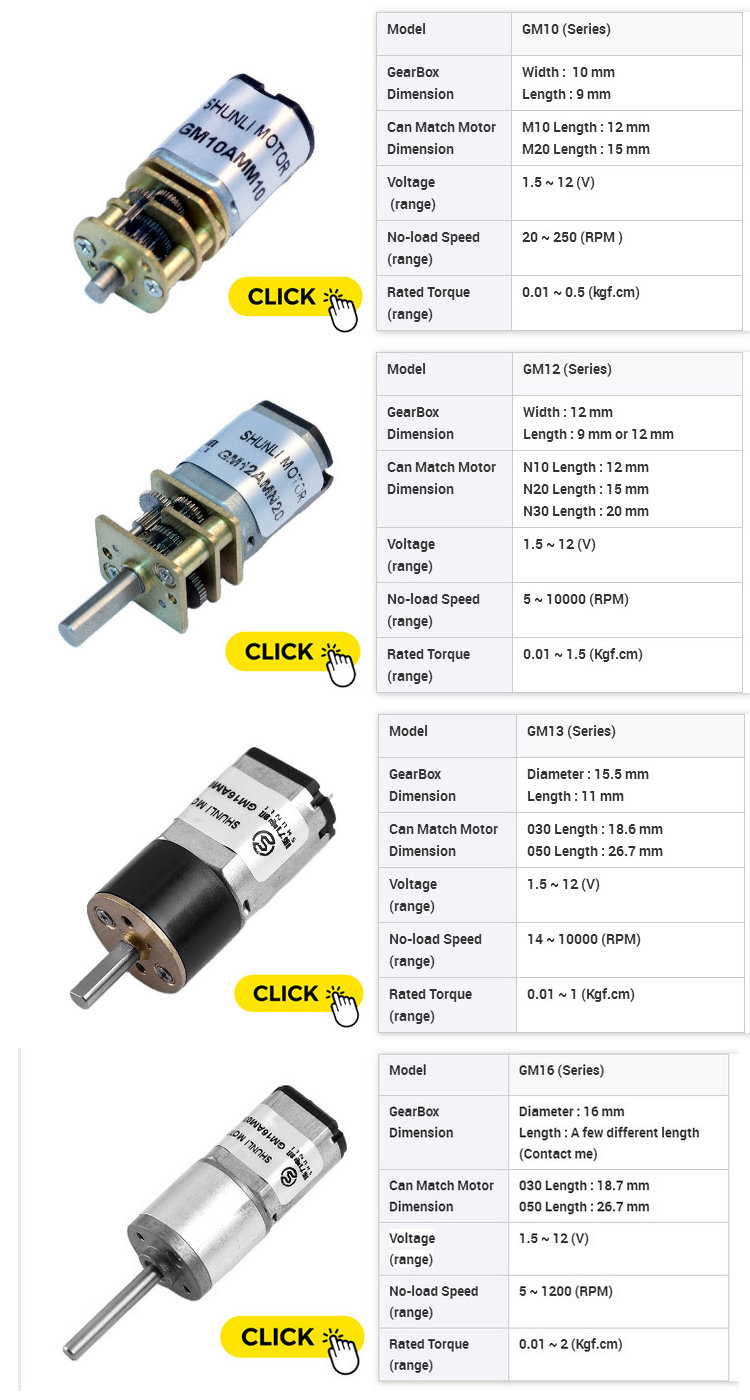

Motor Customized Specification

Reference Drawing

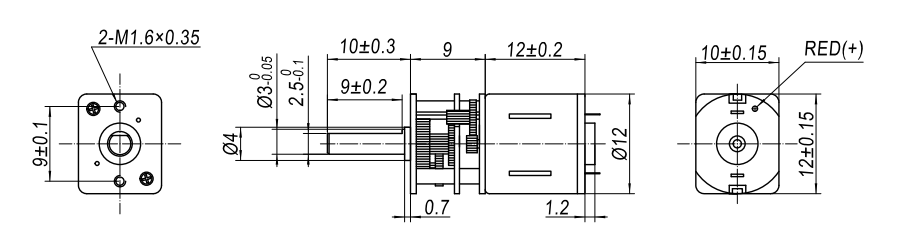

GM12AMN10

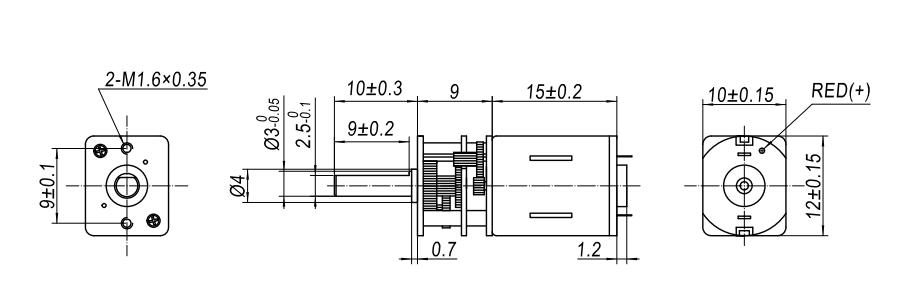

GM12AMN20

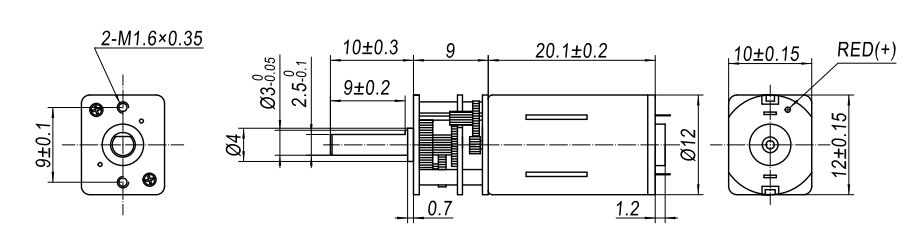

GM12AMN30

Reference Datasheet

Gearmotor Model	Ratio	Rated Voltage (V)	No-Load		Rated			Stall
			Speed	Current	Speed	Current	Torque	Current	Torque
			RPM	mA	RPM	mA	mN.m / gf.cm	mA	mN.m / gf.cm
GM12AMN10-298K	1 : 298	4.5~6VDC	70	≤ 80	55	≤ 285	5.5/55	≤ 700	210/2100
GM12AMN20-150K	1 : 150		92	≤ 55	80	≤ 140	2.8/28	≤ 700	120/1200
GM12AMN30-10K	1 : 10		2500	≤ 60	2200	≤ 195	4.0/40	≤ 400	26/260

Gearbox Technical Data

Number of stages	2	4	5	7
Gearbox Length "L" (mm)	9.0	9.0	9.0	12.1
Ratio	3K / 5K / 10K	17K/20K/30K/36K/ 50K/63K/100K	110K/150K/210K/ 250K/298K/380K	372K/625K/1000K
Max. Rated Torque	200 gf.cm	600 gf.cm	1000 gf.cm	1500 gf.cm
Max. Gear Breaked Torque	600 gf.cm	1500 gf.cm	2800 gf.cm	3500 gf.cm
Gearbox Efficiency	80%~90%	65%~70%	55%~60%	45%~50%

Application

Certifications

Customer Evaluation

Why Choose Us

1. Advanced Production Capacity

We are a factory specializing in producing motors for more than 14 years. With three specialized manufacturing facilities, our professional R&D team, mature management, and experienced engineers ensure a reliable and pleasant experience.

2. Quality Control

In order to confirm quality, every step of the process from receiving materials to shipment is carefully inspected. Quality is the foundation of our development.

Our Services

High credibility and proven industry reputation.

100% on-time delivery rate to ensure your products arrive timely.

Standard samples produced within 2 weeks. Customized samples produced within 3 weeks.

Timely reply: your message will be answered within 2 hours.

Related Products

Frequently Asked Questions (FAQ)

Are you a trading company or manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.

What is the payment term for a new customer?

We support online payments via Master Card, Visa, etc., as well as PayPal or TT.

I cannot find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customers' specific requirements.

Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you require other certifications, we can apply for them for you.

How is your Quality Control?

We have professional inspection staff on every production line process. After finishing the assembly, we use dedicated testing machinery, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.

What is the lead time for standard and customized samples?

Standard samples are produced within 2 weeks. Customized samples will be produced within 3 weeks.
