12 Dc Motor 9000 Rpm Brush Micro Motor 6-24v Is Available

1 / 5

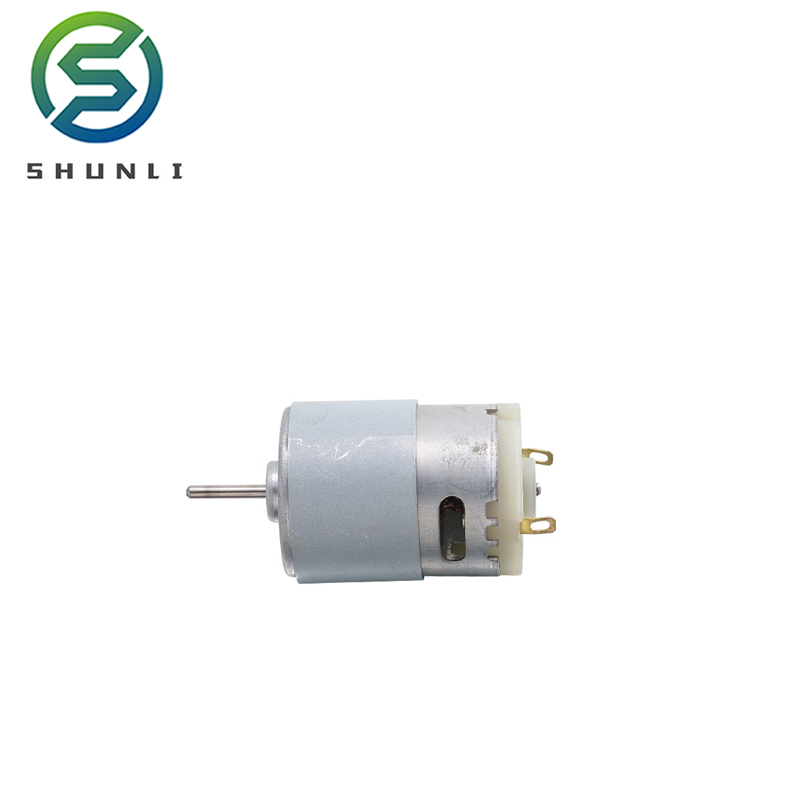

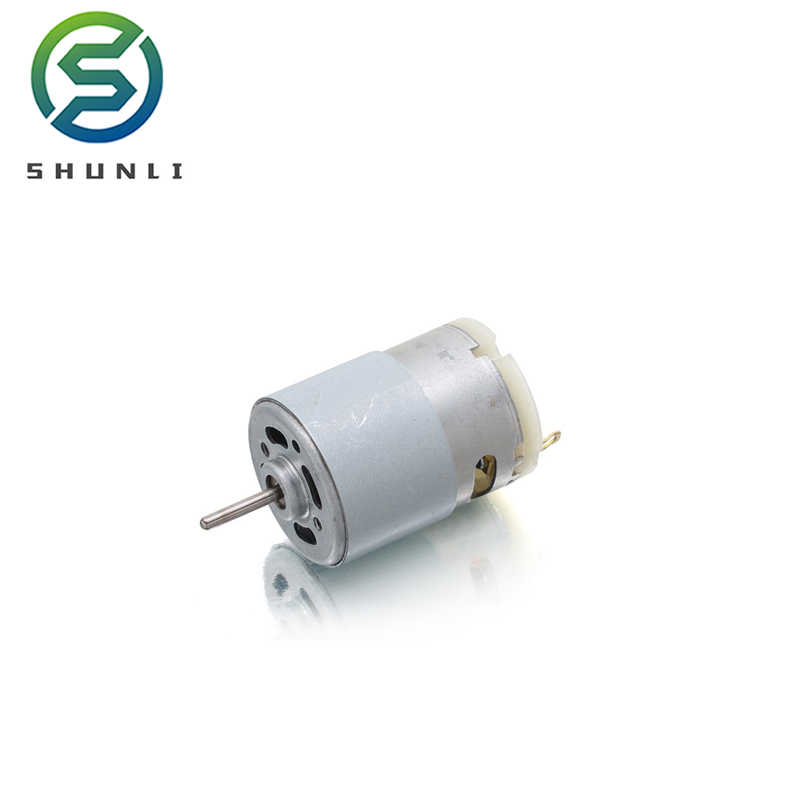

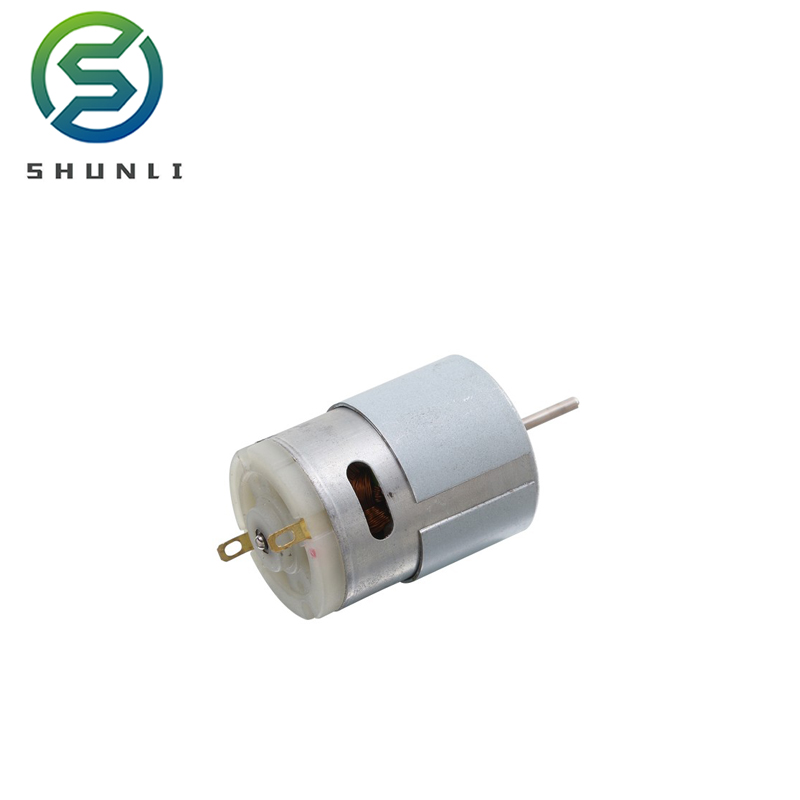

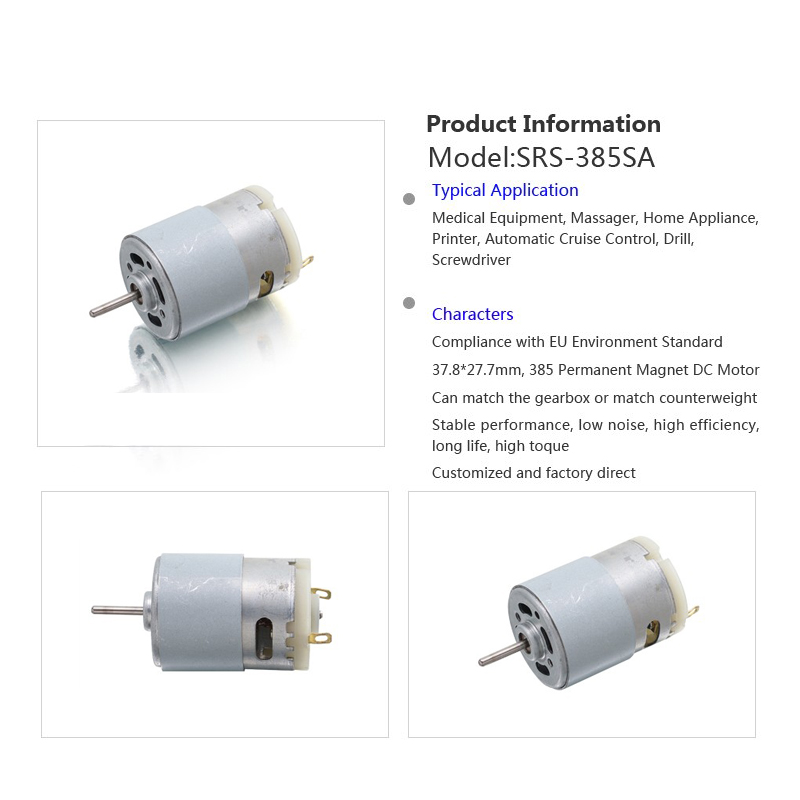

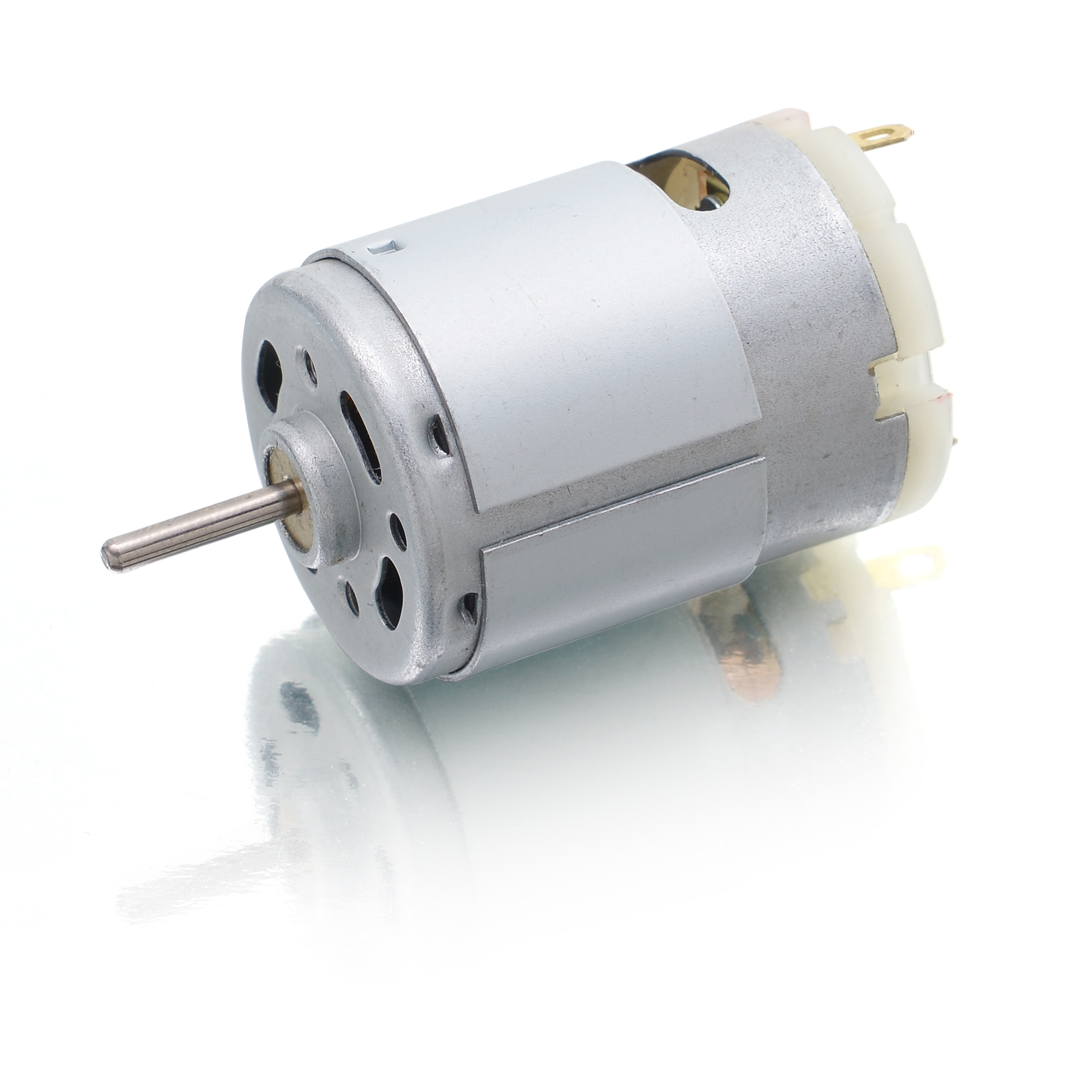

12 Dc Motor 9000 Rpm Brush Micro Motor 6-24v Is Available

Send Inquiry

Product Description

12V DC Motor 9000 RPM Brush Micro Motor (6-24V Available)

Special Promotion

Product Description

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-380SH	4052	3.0~6.0	4.8VDC	7800	0.32	6701	1.95	9.9 / 101	6.98	11.9	70.6 / 720
RS-380SH	3557	6.0~12.0	12VDC	21200	0.44	18367	2.85	11.26 / 114.9	21.68	18.5	84.3 / 860
RS-385SH	17110	6.0~24.0	24VDC	11000	0.15	9034	0.69	10.7 / 109	10.12	3.16	59.8 / 610
RS-385SH	2267	6.0~12.0	12VDC	10000	0.17	8340	0.85	7.5 / 76.5	6.53	4.29	45 / 459

Applications

Our Enterprise

Established in 2005, the enterprise is a high-tech manufacturer integrating the research, development, production, and sales of various kinds of micro DC motors, geared motors, planetary geared motors, shade pole geared motors, and special gearbox motors. Products are widely used in automobiles, communications equipment, smart homes, medical equipment, intelligent security, household appliances, commercial kitchen equipment, machinery, electronics, and other high-end transmission structures. The products are exported to more than 50 countries and regions globally.

Production Process

Quality Certifications

Frequently Asked Questions

1. Are you a trading company or a manufacturer?

We are a professional manufacturer. We specialize in micro DC motors and DC gear motors with over 14 years of design and manufacturing experience.

2. What are the payment terms for new customers?

We accept online trade assurance orders, major credit cards, PayPal, and Telegraphic Transfer (T/T).

3. Can you customize the motor if I cannot find a suitable model on your website?

Yes, we support comprehensive customization. We can adjust the voltage, speed, torque, shaft dimensions, and motor configurations according to your design specifications.

4. What certifications do your micro motors hold?

Our motors are manufactured in compliance with international standards and hold CE, FCC, ISO, and RoHS certifications. We can also assist in obtaining specific certifications for your local market if needed.

5. How is quality control handled in your factory?

We operate a strict multi-stage quality control process. Every step of the production line features inspections, followed by fully automated final testing. We utilize advanced measurement tools including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testing Rigs, Temperature Chambers, and Decibel Meters.

6. What is the typical lead time for custom samples?

Standard sample runs typically take 7 to 10 working days, depending on the complexity of the custom specifications requested.
