Home > Planetary Gear Motor > Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier

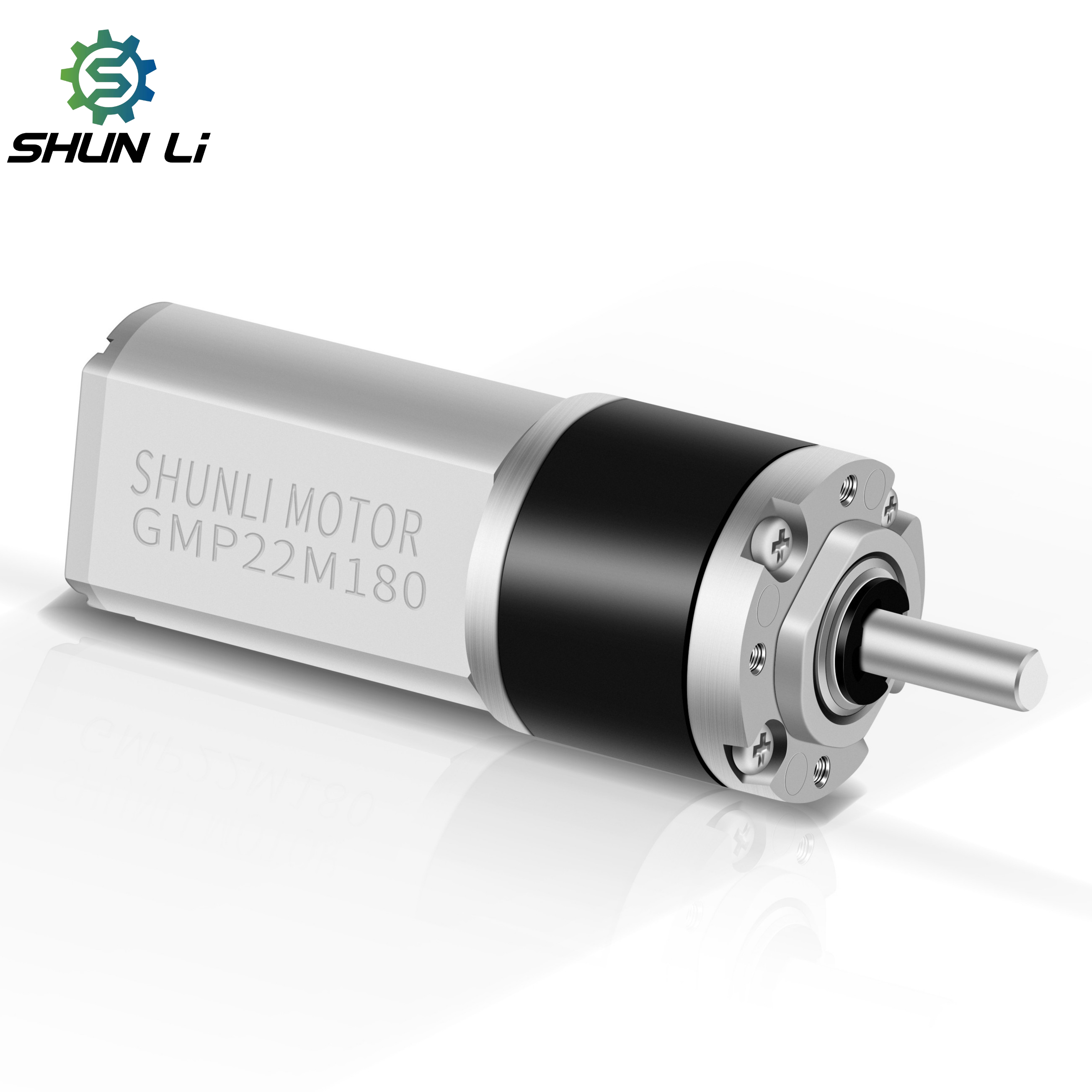

Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
1 / 5
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier

Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier

Send Inquiry

Product Description

Product Overview

Product Specifications

GMP22M130/180
Product Model GMP22M130/180
Gearbox Length 13.3 ~ 27.3MM
Speed 30RPM - 138RPM
Voltage 6V / 5V
Torque 0.095 N.m / 0.32 N.m
Support Customization The Transmission Dimensions and Motor Parameters can be customized

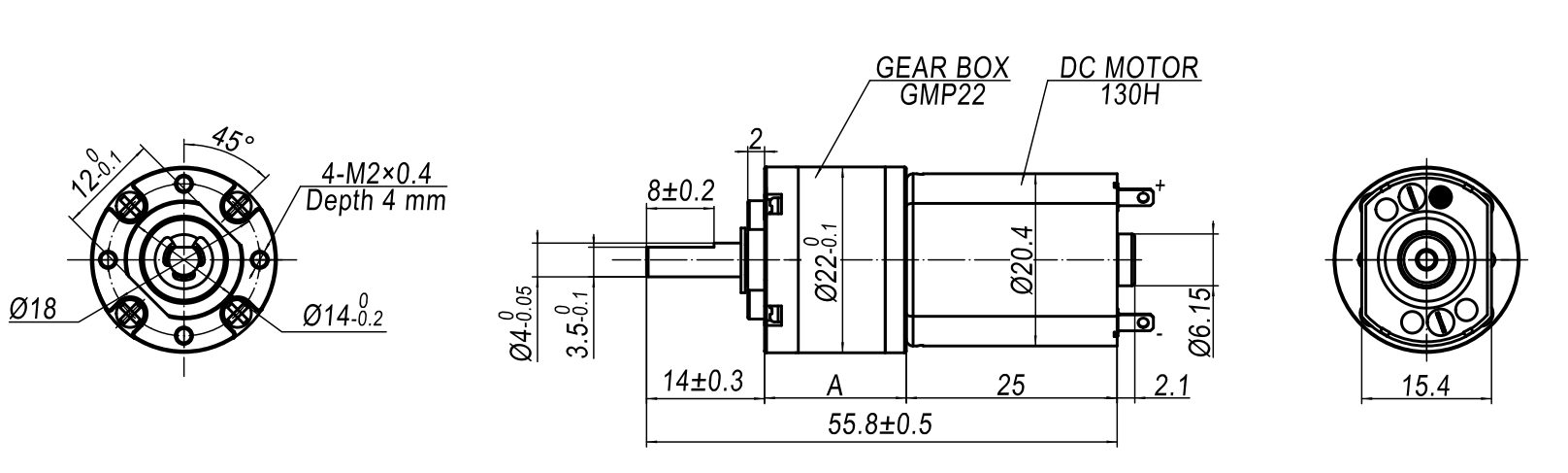

Technical Dimensions

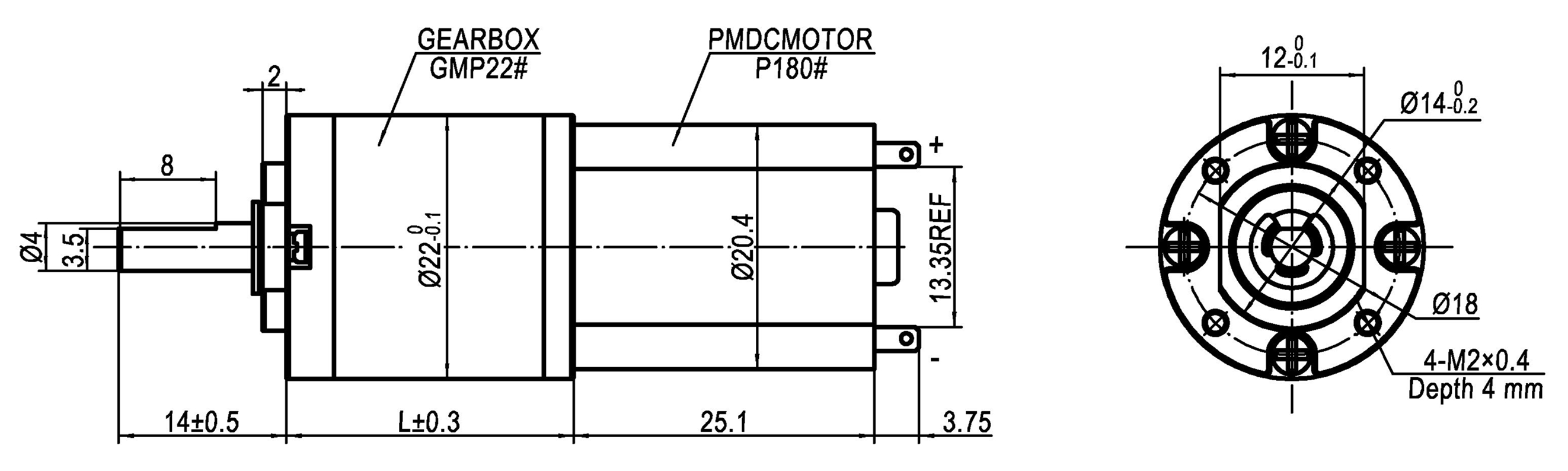

Technical Drawing

Performance Curves

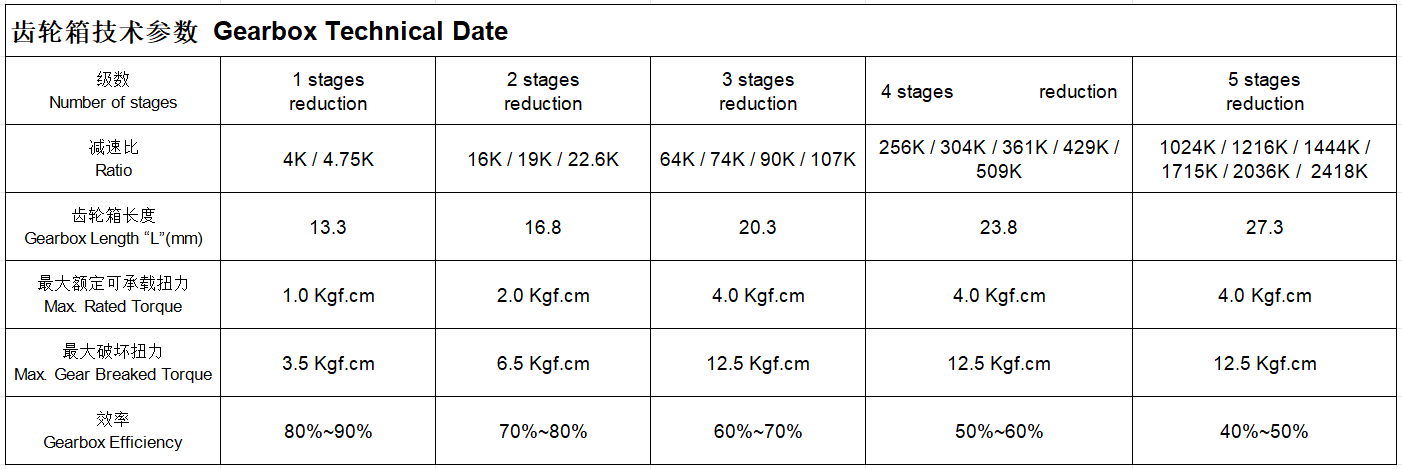

Performance Curve Chart 1

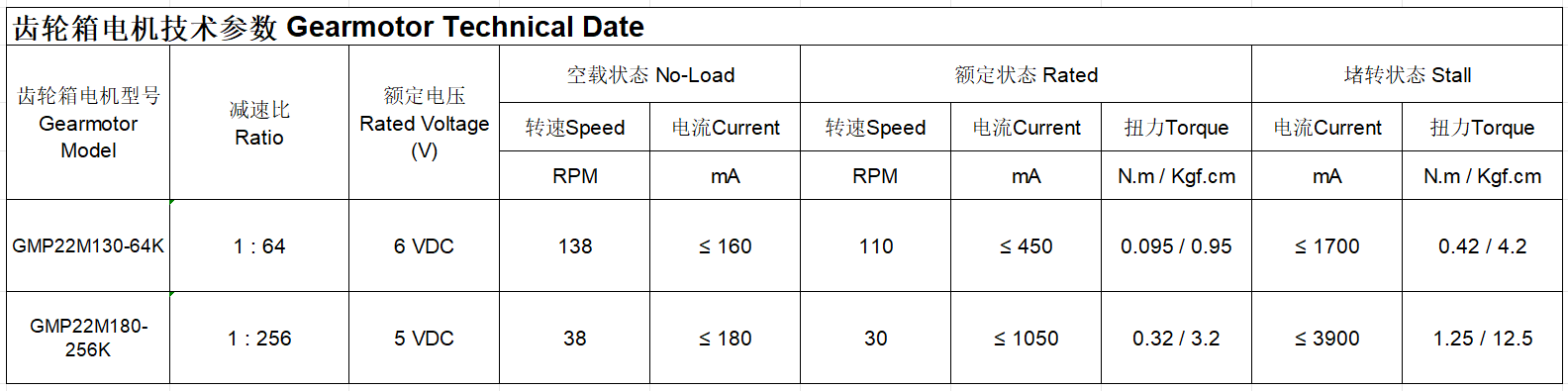

Performance Curve Chart 2

Applications & Manufacturing

Manufacturing Details 1
Manufacturing Details 2
Manufacturing Details 3
Manufacturing Details 4
Manufacturing Details 5
Manufacturing Details 6

Frequently Asked Questions

Q1 Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with extensive manufacturing experience.
Q2 What is the payment term for new customers?
We can draw up online trade assurance orders for new customers, which can be paid online via Mastercard, Visa, etc. Customers can also choose to pay via PayPal or T/T.
Q3 I cannot find a suitable motor on your website. Can you customize the motor for me?
Yes, we can customize a suitable motor according to our customers' specific application requirements.
Q4 Do you hold certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant standard certificates. If you require other specific certificates, we can apply for them on your behalf.
Q5 How does your quality control process work?
We have dedicated quality control inspectors assigned to every phase of the production line. Once the motor is fully assembled, we conduct tests using high-precision testing machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Chambers, and Noise Testers.
Q6 What is the lead time for product orders?
Lead times typically depend on the specific customization requirements and order volume. Please consult our support team for an accurate delivery timeline.
