MicroDyn Motor
1 / 5
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | mA | RPM | mA | mN.m / gf.cm | W | mA | mN.m / gf.cm | ||||

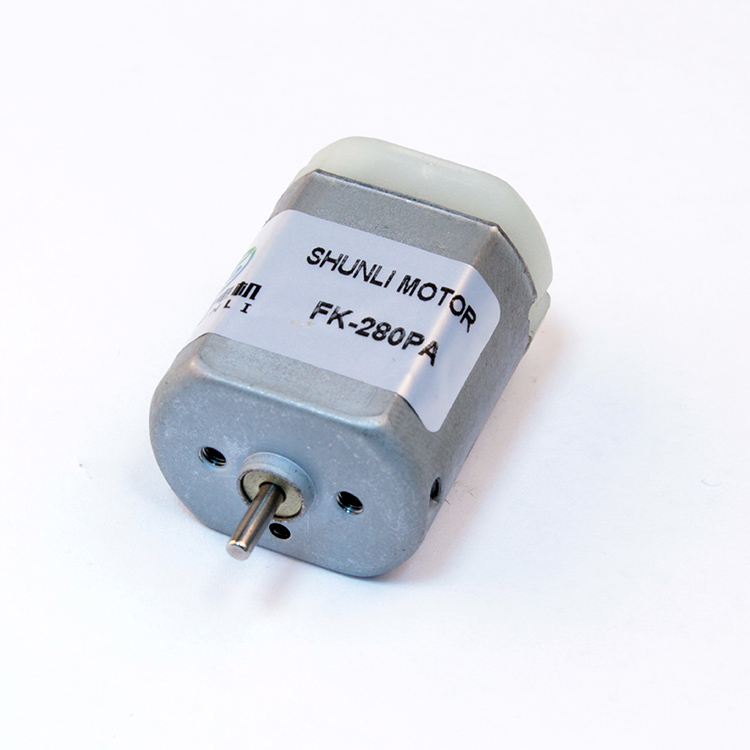

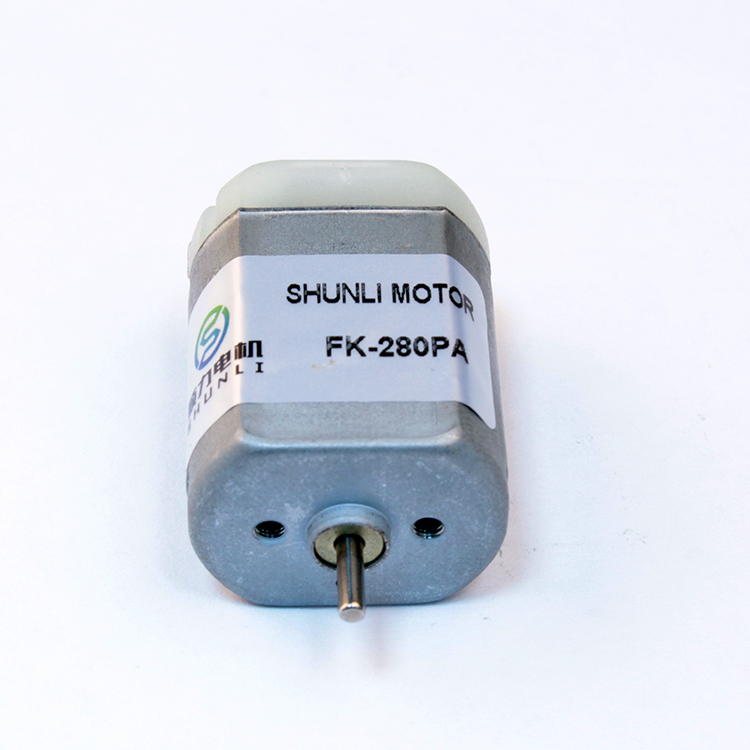

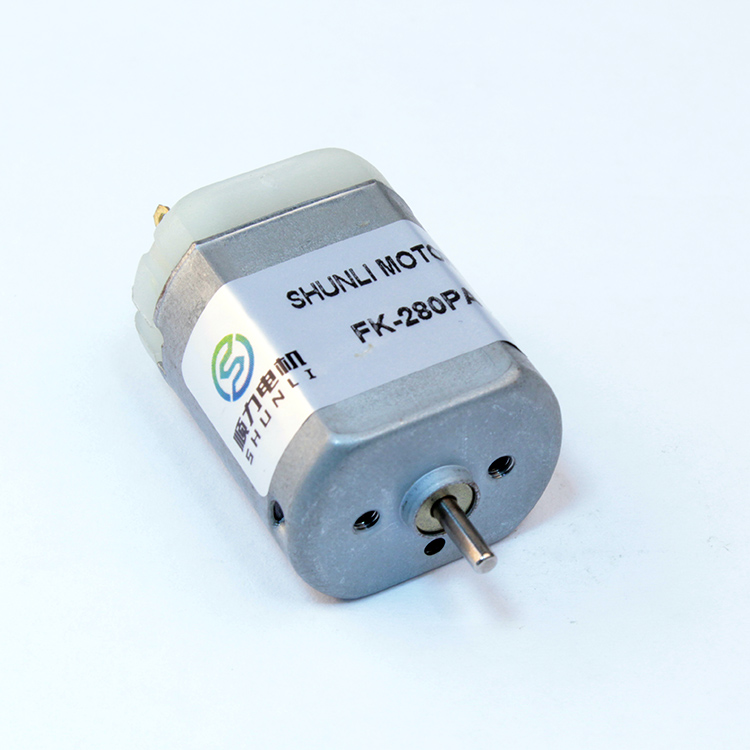

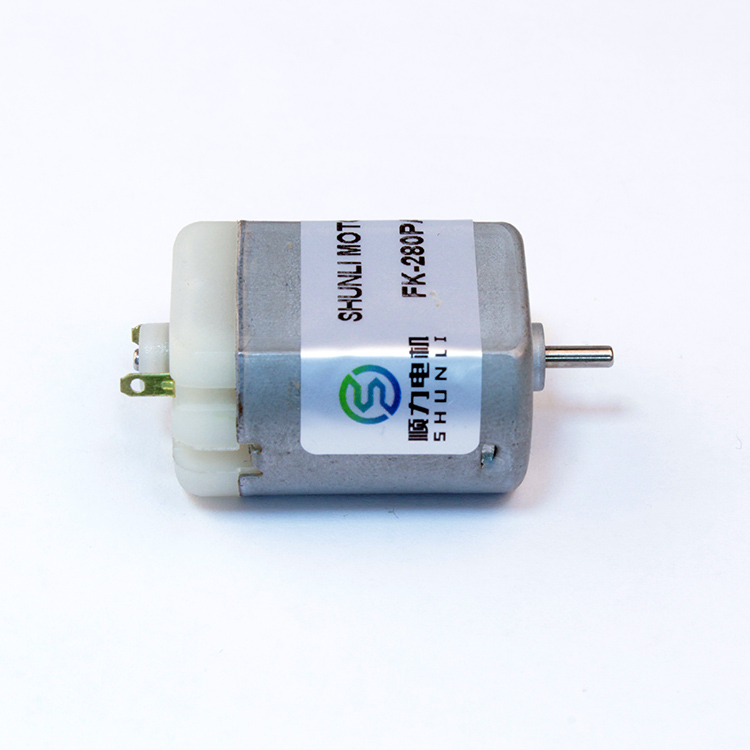

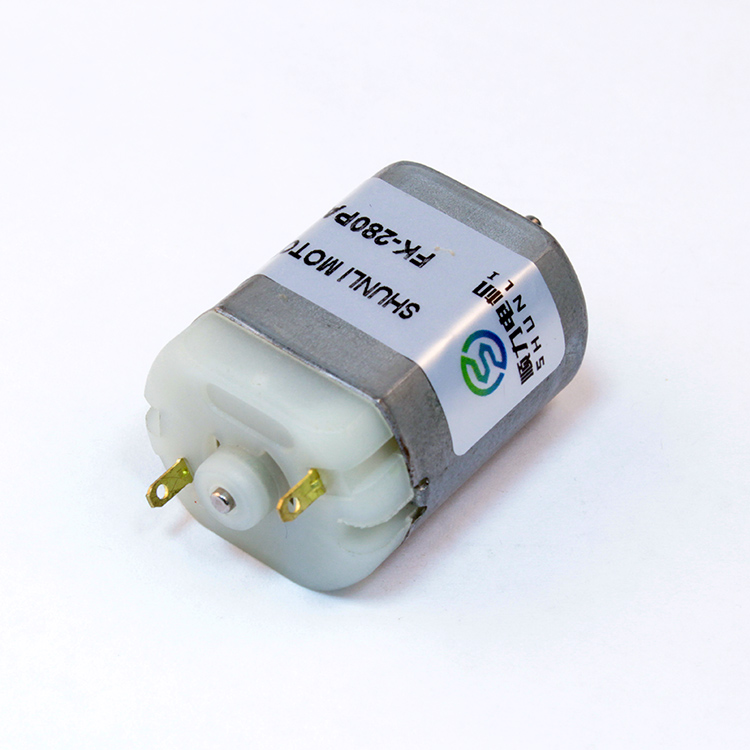

| FK-280SA | 4525 | 1.0~2.0 | 1.2VDC | 8670 | 730 | 6560 | 2240 | 1.74 / 17.7 | 1.3 | 8430 | 9.61 / 98 |
| 16245 | 6.0~12.0 | 12VDC | 7300 | 60 | 6027 | 290 | 3.4 / 34.6 | 2.15 | 1350 | 19.5 / 198 | |
Refer to the technical table above to understand full performance parameters.
We specialize in producing high-quality motors for more than 14 years. Backed by dedicated R&D teams, professional engineers, and a mature management system, we guarantee an exceptional product experience customized to your industrial requirements.
Quality is the foundation of our growth. Every incoming raw material undergoes strict inspection and every production phase is systematically monitored before final packaging and delivery.
Are you a trading company or a manufacturer?
We are an established factory specializing in micro DC motors and DC gear motors with over 14 years of manufacturing experience.
What are the payment options for new customers?
For new clients, we support secure online transaction systems supporting MasterCard, Visa, PayPal, or Direct T/T wire transfers.
Can you design and customize the motor if I cannot find it on your catalog?
Yes, custom engineering is our core strength. We can design and develop tailored motors according to your specific parameters and requirements.
Do you hold industry-standard certifications for your motor lineup?
Yes. Our products are fully certified with CE, FCC, and ISO guidelines. Additional compliance checks and certificates can be requested as needed.
How do you maintain strict quality control internally?
We employ quality inspection professionals at each phase of assembly. Completed motors undergo thorough testing via advanced instruments including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Cycle Testers, Temperature Testers, and specialized Noise testing chambers.
What is the standard turnaround time for sample requests?
Standard samples are typically finalized and processed within 2 weeks, while highly customized engineering samples are delivered within 3 weeks.
